Tekniset tiedot

Classification: Electro-optical radio channel security detector

Type of detector: Wireless

Installation method: Outdoors/indoors

Color: Only white

Recommended installation height

0.8 — 1.3 m

Compatibility

Operates with all Ajax hubs, and range extenders

Sensing element

Two PIR sensors

Alarm signal delivery time

0.15 s

Motion detection distance

Adjustable, up to 3–15 m

Detection angle

Horizontal — 90°

Time for motion detection

From 0.3 to 2 m/s

Sensitivity

Adjustable, 3 levels

Pet immunity

Weight — not relevant

Height — up to 80 cm

Anti-sabotage

Anti-masking

Protection against forgery

Jamming detection

Tamper-resistant

Power supply

Battery: 2 × CR123A batteries, 3 V, pre-installed

Optional mains supply: 5–28 V DC

Battery life

Up to 5 years

Learn more

Jeweller radio technology

Communication range with the central unit — up to 1,700 m in an open space

Two-way communication between devices

Operating frequencies — 868.0?868.6 MHz

Self-adjusting RF output power — up to 20 mW

Block encryption based on AES algorithm

Detector polling period — 12—300 s

Learn more about Jeweller

Temperature sensor

Available

Operating temperature range

From -25°? to +60°?

Permissible humidity

Up to 95%

Protection class

IP55

Remote set up and testing

+

Dimensions

183 × 70 × 65 mm

Weight

322 g

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Service life

10 years

Complete set

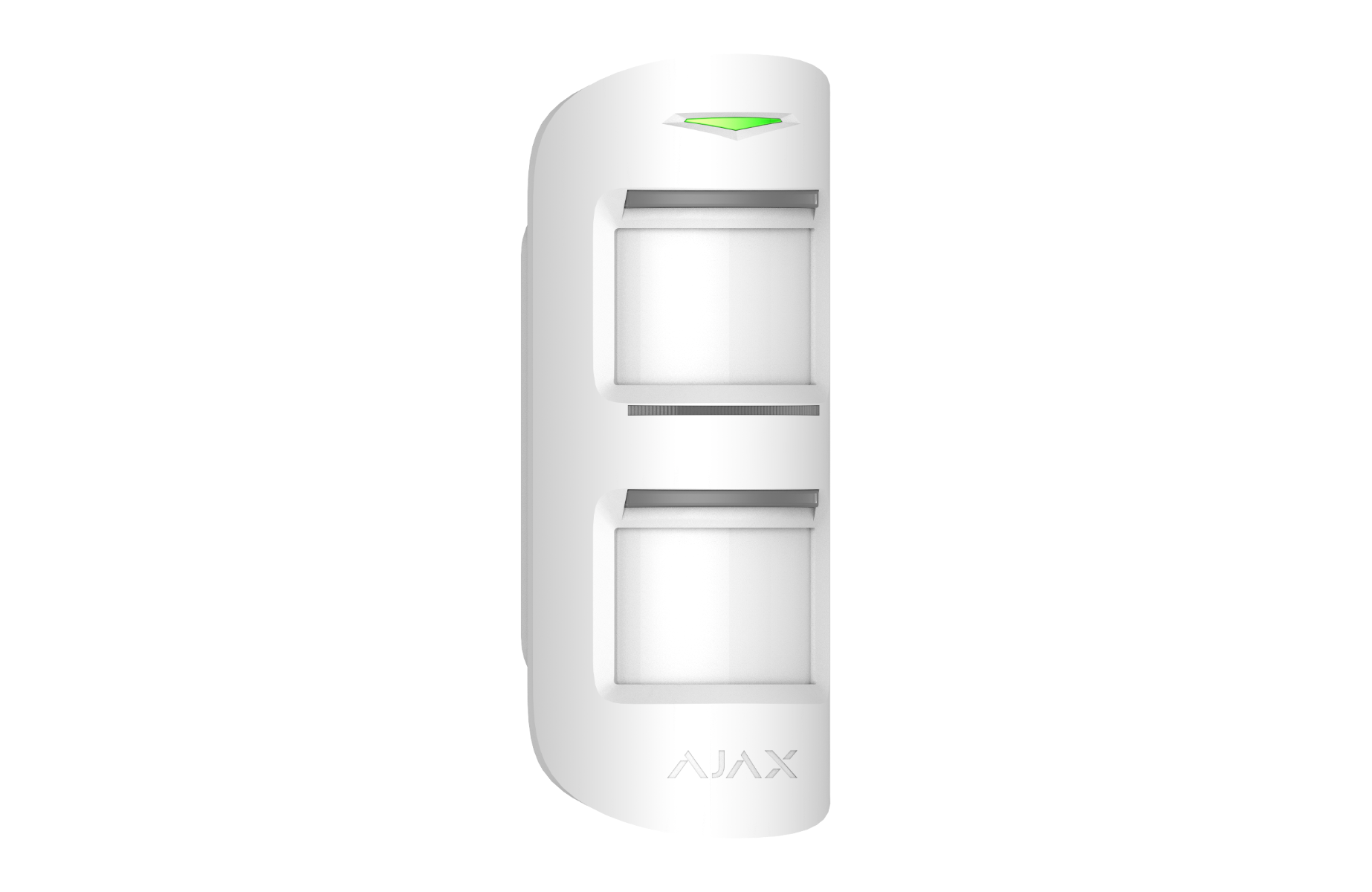

MotionProtect Outdoor motion detector

SmartBracket mounting panel

Two CR123A batteries (pre-installed)

Installation kit

User's guide
